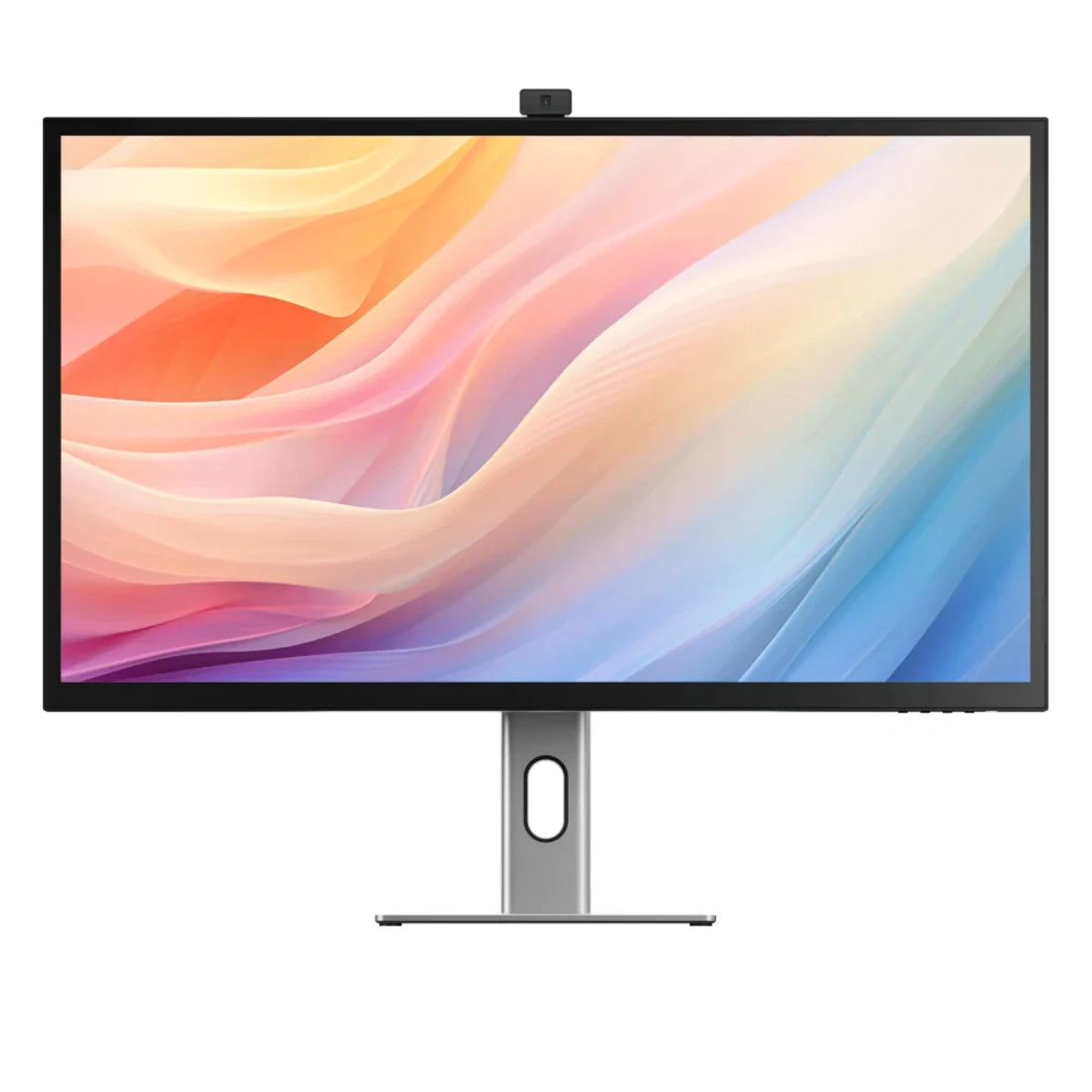

The technology behind our Clarity monitors hasn’t lost any of its lustre in
the transition to a bigger screen. They remain a studio-grade tool for creatives professionals
who rely on accurate colours to work.

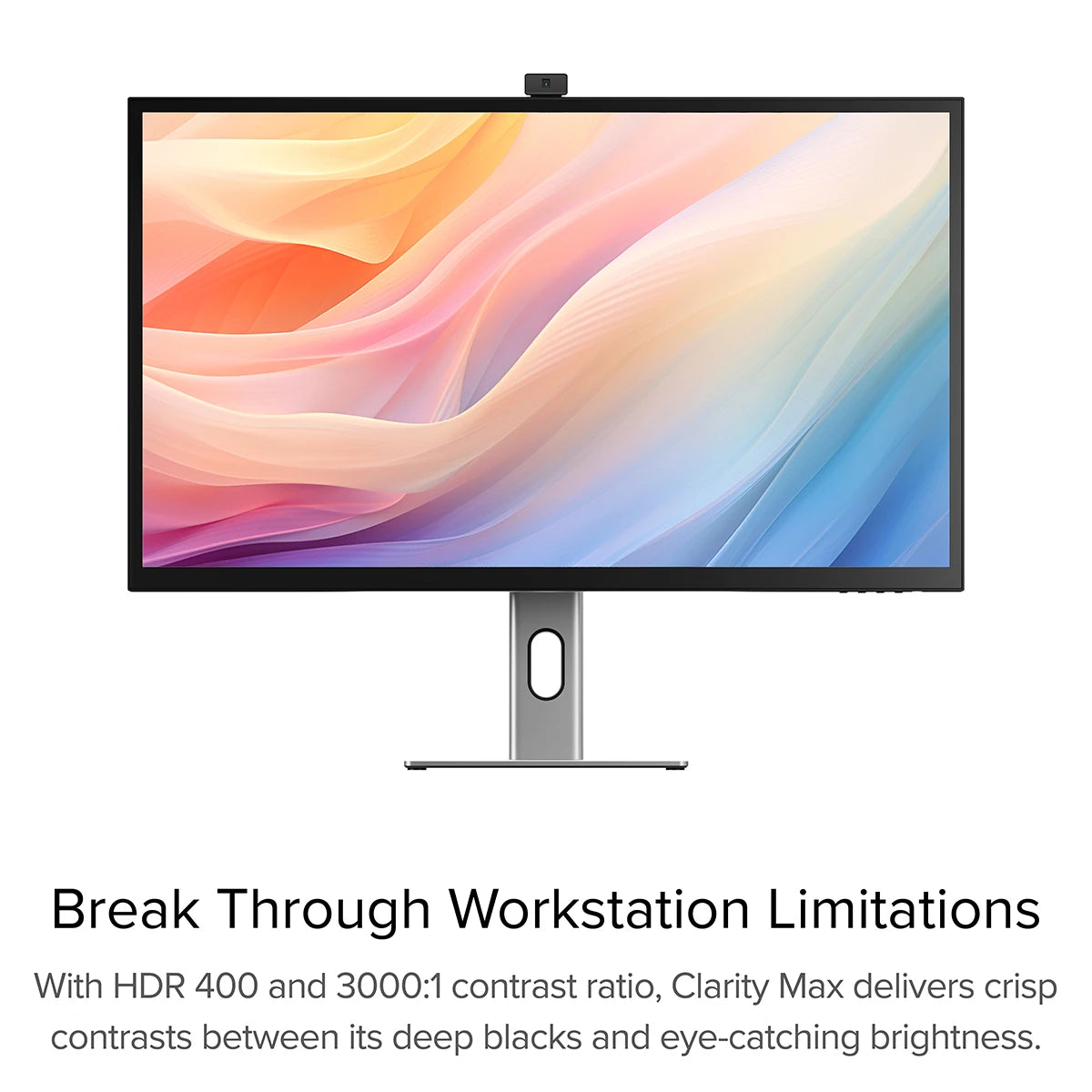

With HDR400 support and a 3000:1 contrast ratio, Clarity Max delivers crisp contrasts between
its deep blacks and eye-catching brightness. Offering more than 16 million colours across their
4K Ultra High Resolution display, Clarity Max monitors are the perfect place to realise your
next
masterpiece.
Connect to Creativity with a Single Cable
Sitting at the centre of your studio, Clarity Max Pro connects your computer to
everything you need to compose your next piece.
Its rear USB hub connects your computer Clarity Max Pro’s webcam, two USB-A accessories, 65W laptop
charging and your 3.5mm speakers or headphones – all with the same USB-C cable you’re using for
video.
See Yourself on The Big Screen
Put your best foot forward with the
crystal-clear
picture of Clarity Max

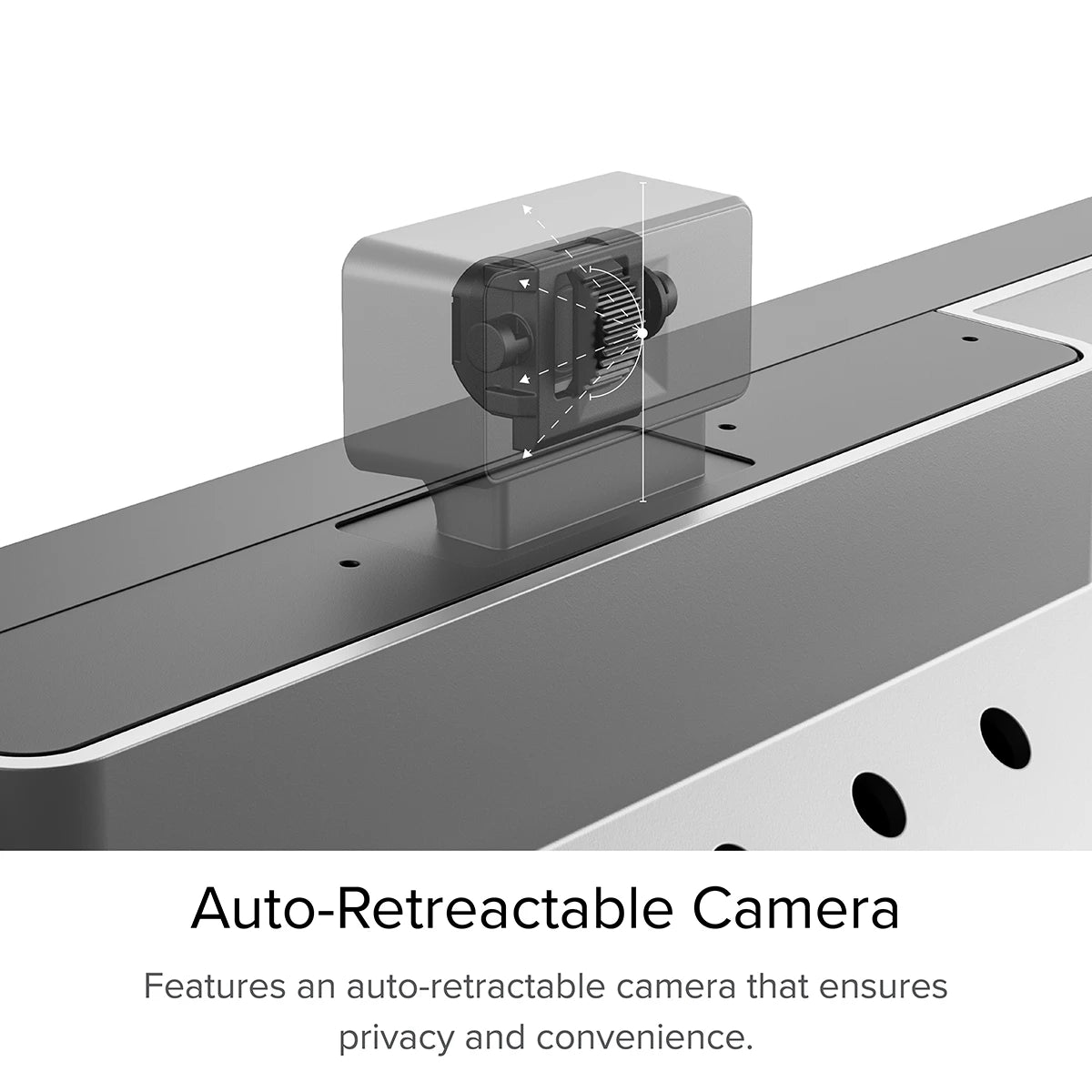

Pro or Touch’s 8MP retractable webcam. The smart webcam automatically slides back into the
monitor when it’s not in use, preventing you from sharing anything you didn’t mean to.
Perfect Colour for Work and Play

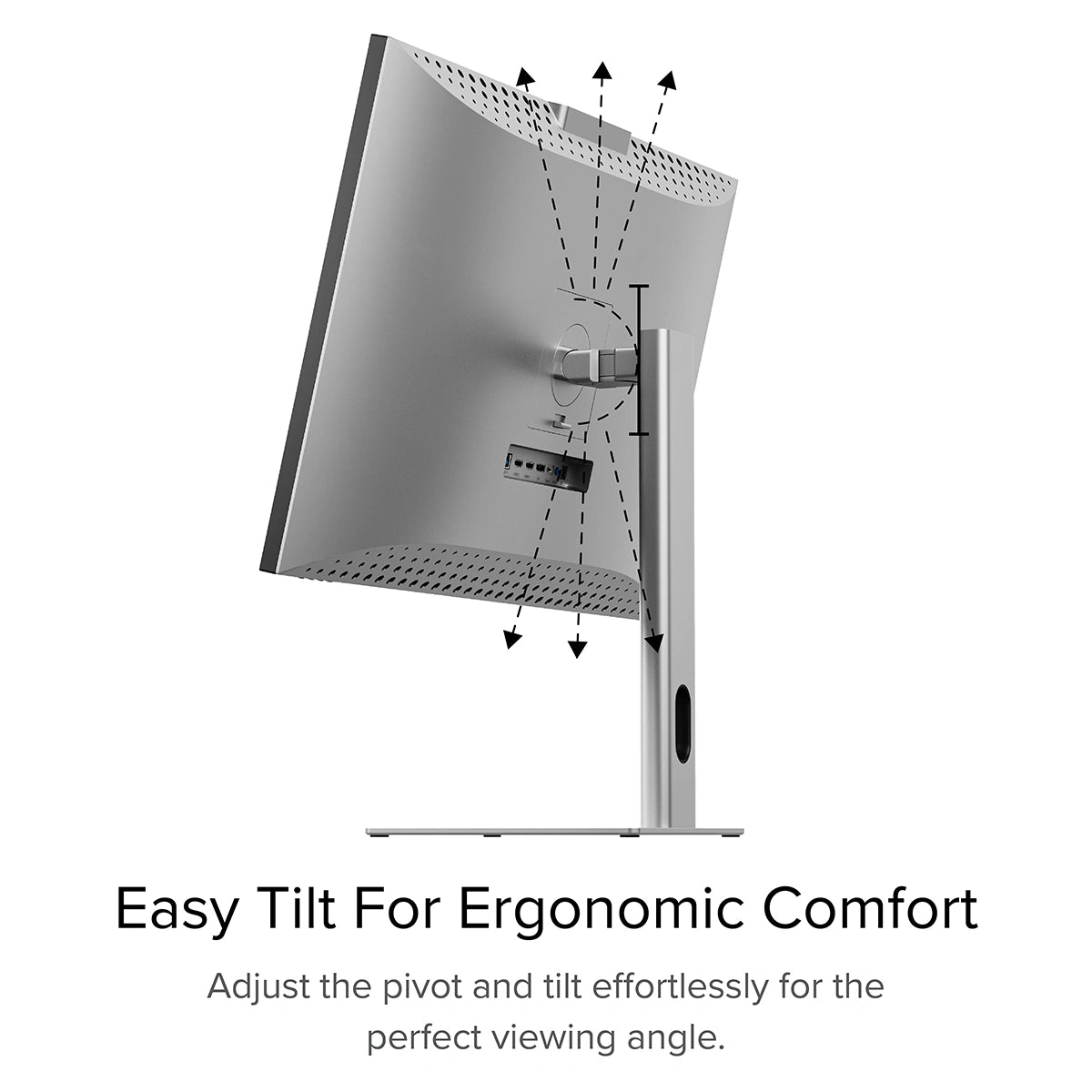

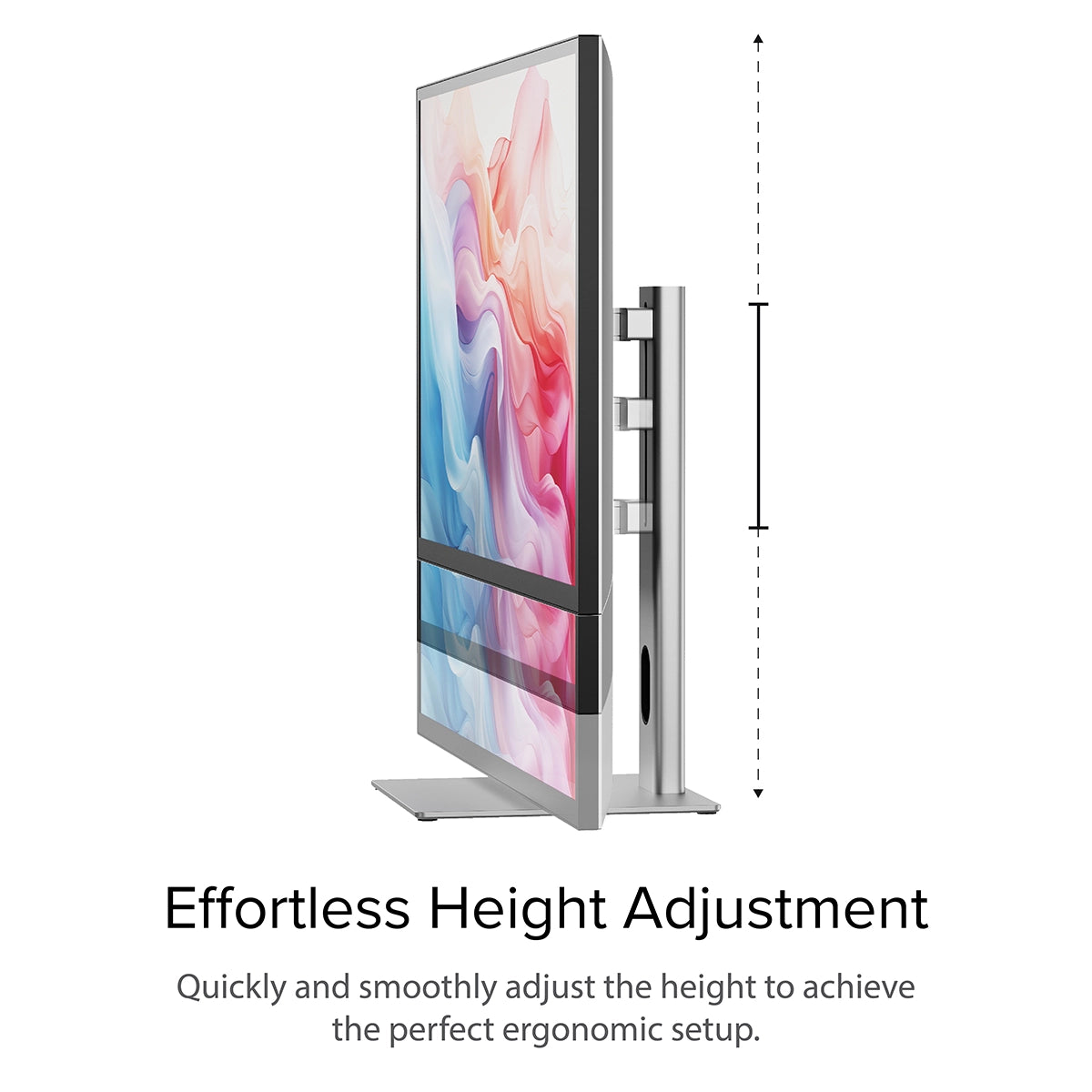

Raise, Lower, Tilt and Twist

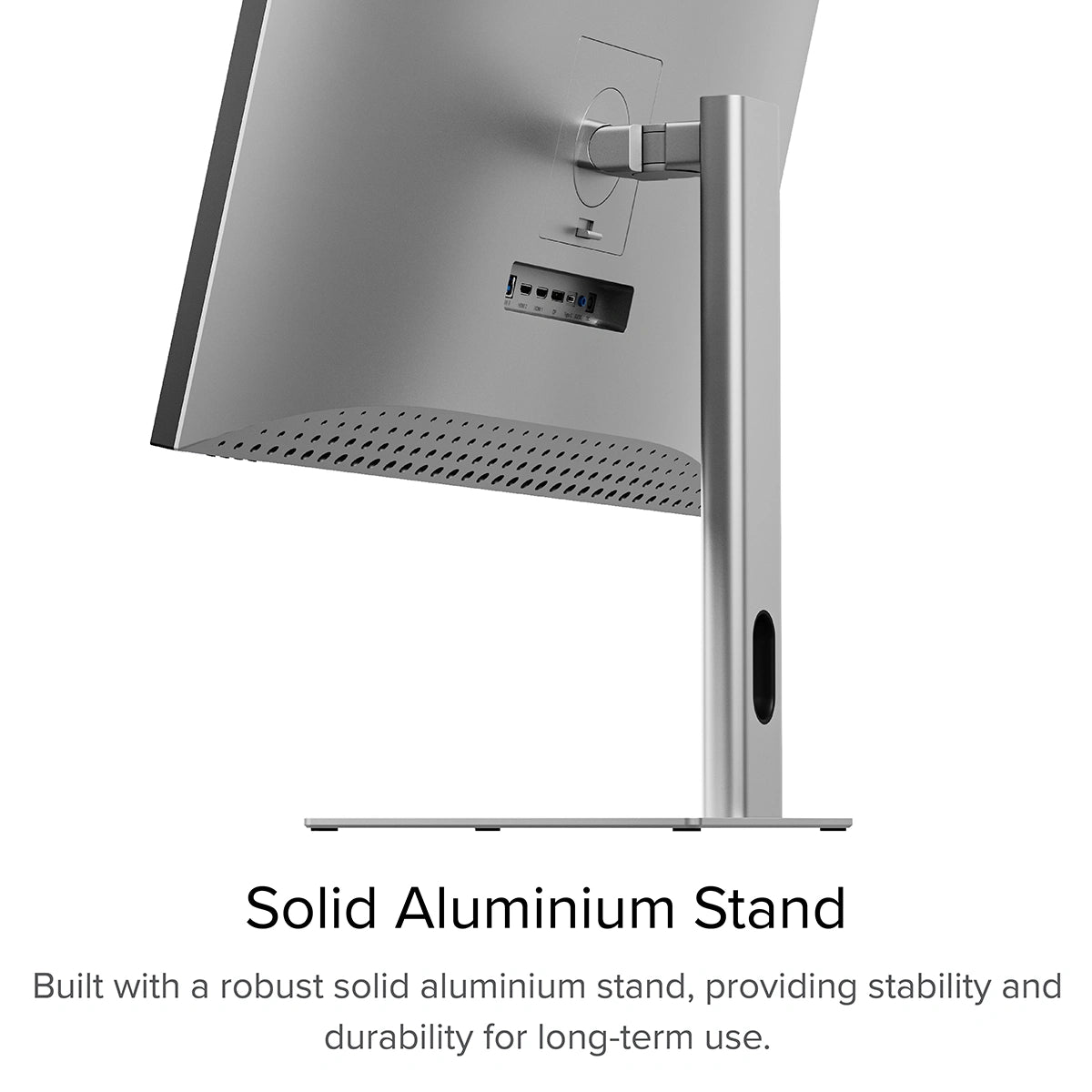

Our aluminium stand makes it easy to position Clarity Max exactly where you
need it, letting you raise, pivot, tilt and swivel the display to fit your desk setup and maximise
ergonomic comfort.
With Clarity Max, it’s easy to show off your latest design to colleagues, with wide 178° viewing
angles across its broad 32” screen.
Compatible with 100x100mm VESA Mounts (such as our Clarity Fold Stand and Glide Monitor Arms),
Clarity Max is an easy inclusion in any setup, despite its size.
How big is Clarity Max? How high and low can it go on its stand?
See the diagrams below for Clarity Max’s range of motion with the included stand.
What’s the difference between Clarity Max, Clarity Max Pro and Clarity Max Touch?
Clarity Max is just a monitor, while Clarity Max Pro features our smart webcam, while Clarity Max Touch features the webcam and a touchscreen.
Does Clarity Max support VESA Mounting?
Yes, Clarity Max supports 100x100mm VESA mounts and includes compatible mounting screws.
As a larger monitor, it’s important to check your monitor stand will support Clarity Max to avoid damaging your monitor.
Clarity Max is 32”, weighs 6.5kg without the stand and measures 725*250*606mm (LxDxH).
How do I use Clarity’s USB-A ports?
In order for your computer to access devices you've plugged into Clarity's two rear USB-A ports, you need to ensure your computer is:
Connected to Clarity via either:
1. Clarity's USB-C port
2. Clarity's USB-B port
Clarity’s "Active USB" mode is set to the same USB port you've connected to your computer.
To change Clarity's "Active USB" mode, navigate to "USB Switch" in the "Other Settings" menu of Clarity's main menu.
For example: if your computer is connected to Clarity via USB-C, you would select "Type-C" in the "USB Switch" menu.
Are Clarity Max monitors compatible with Windows, macOS and Chromebooks?
Yes, Clarity’s Webcam, Charging and Touch features have been tested with all three operating systems and work great.
In order to get multitouch working on macOS, you’ll need to install our macOS drivers.
Clarity’s Webcam hasn’t been tested with legacy versions of Windows and macOS.
How do I recharge my laptop with Clarity?
To charge your laptop via Clarity (up to 65W), simply connect it to the monitor via a USB-C cable which supports the required wattage.
However, it does need to plug into a USB-C port compatible with PD (Power Delivery) on your computer.
These can sometimes be identified by the presence of a battery icon next to the port on your laptop, but often you’ll need to check the user manual or manufacturer’s website to figure out which USB-C ports support PD.
All Thunderbolt 3 and 4 ports support PD.

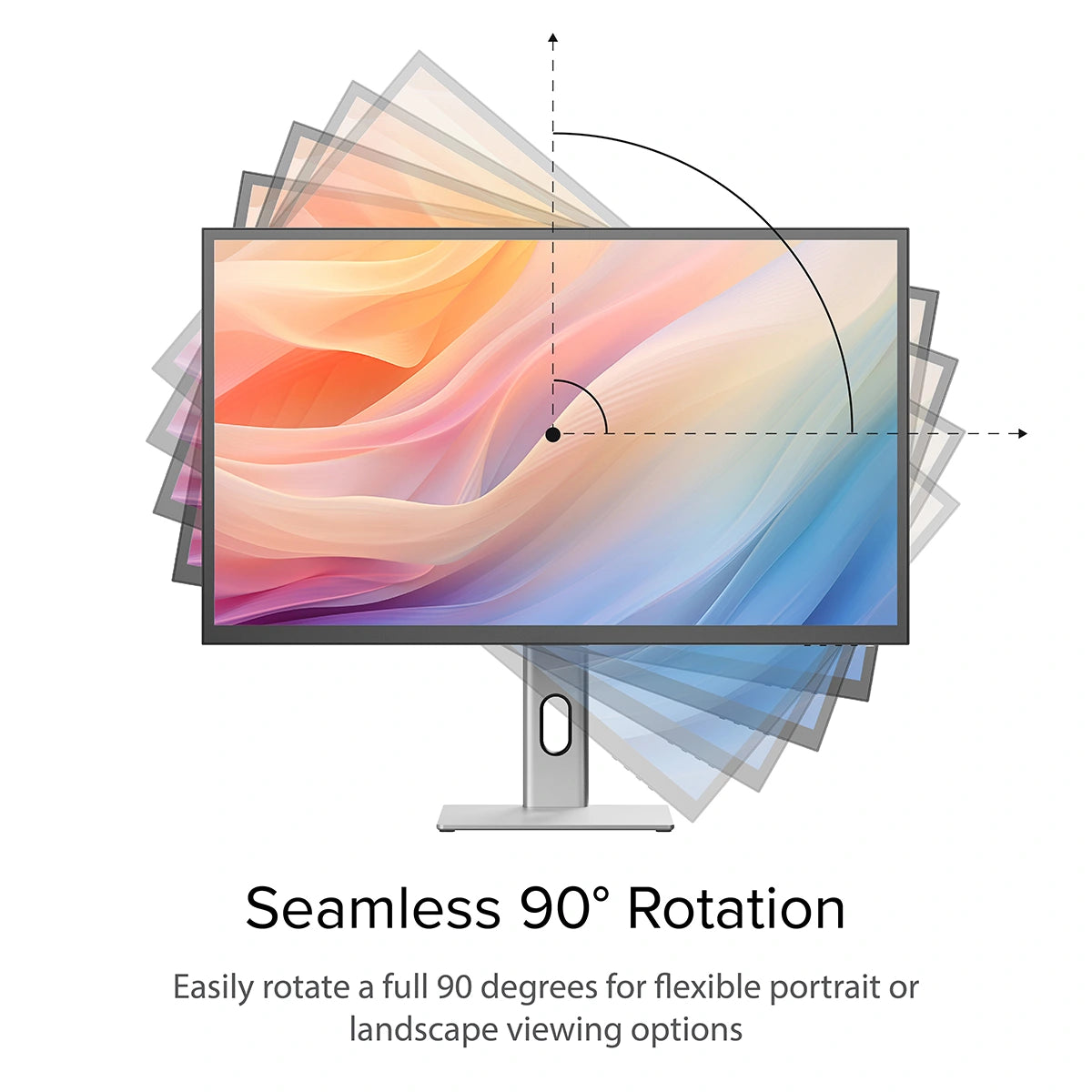

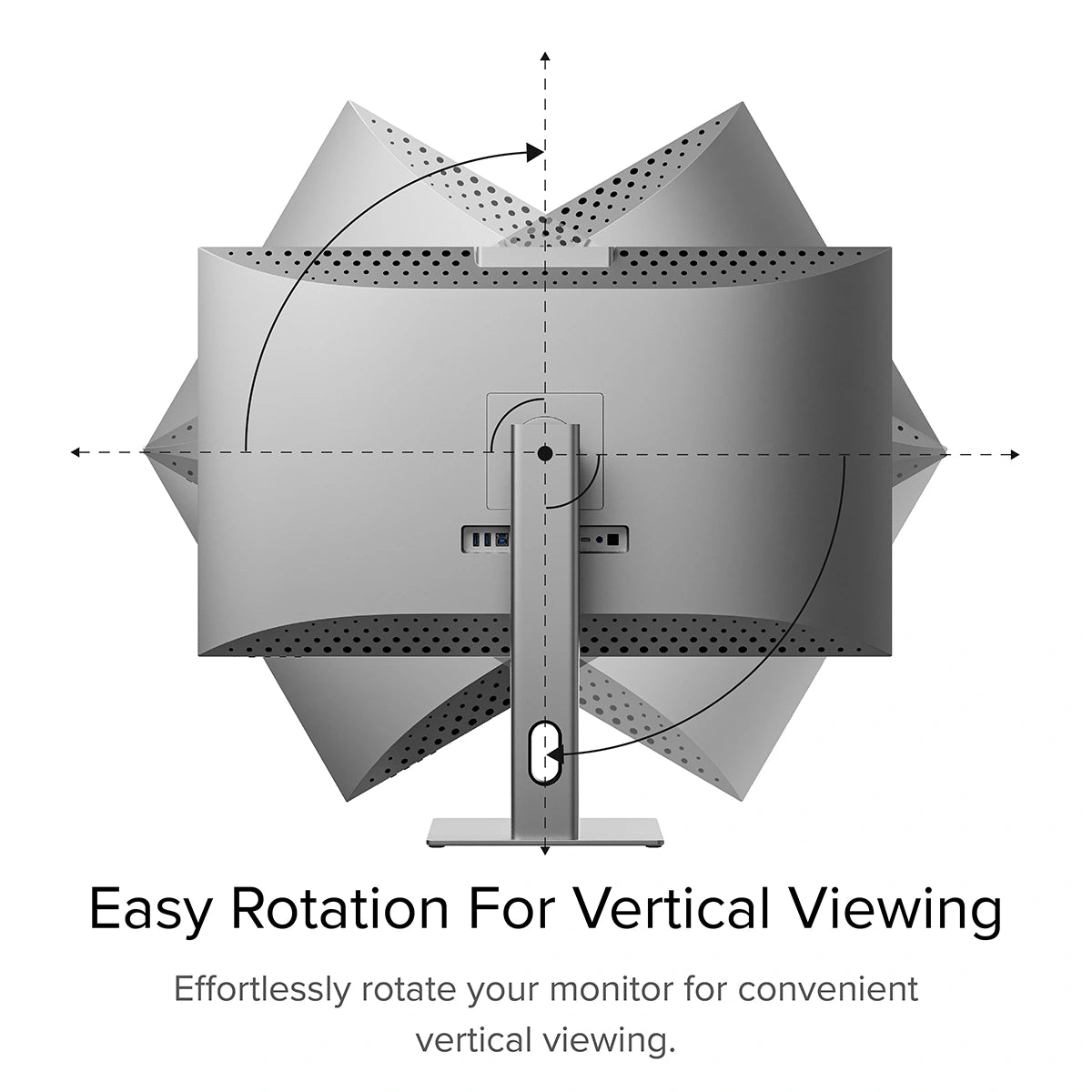

How do I rotate a Clarity Max screen to Portrait?
To rotate your Clarity Max’s screen, you need to:
1. Ensure the monitor is at its maximum height on the stand. 2. Tilt the monitor as far as it can go by pulling its bottom edge towards you.
You can then slowly rotate the monitor without the corner hitting the desk.
Clarity Max’s screen won’t automatically rotate after you move the monitor. To rotate the picture, follow these steps:
Mac
1. Open System Settings -> Displays.
2. Click on your Clarity Max and change ‘Rotation’ to 90° or 270°, depending on which way you turned it.
Windows
1. Open Settings -> System - > Display.
2. Click on Clarity Max, and under the ‘Scale & layout’ menu, switch ‘Display Orientation’ to Portrait or Portrait Flipped, depending on which way you turned it.
Troubleshooting
When I wake my computer from sleep mode, Clarity doesn’t come back on.
In some cases, it’s possible for Clarity not to recognize the wake-up signal from a connected computer. This issue occurs most often when Clarity is connected to a computer through a dock.
To resolve the issue, restart Clarity by pressing the power button twice – it should recognize the connected device as part of its boot-up sequence.
If this issue persists, we recommend trying the following steps to isolate the issue:
1. Connect Clarity directly to your computer
2. Try connecting with a different cable or port.
• ie. Use DisplayPort instead of USB-C
3. Update your computer’s operating system.
If your problem reoccurs and these these steps do not help resolve it, please contact ALOGIC support (support@alogic.co).
Webcam
What resolution is Clarity’s webcam?
Clarity Max Pro/Touch’s webcam has an 8MP sensor, or 8 million pixels. This is roughly equivalent to a 4K image.
Does Clarity Pro’s webcam have a microphone?
Yes, Clarity Pro’s webcam includes an array of four microphones to capture sound.
What programs does Clarity Pro’s smart webcam support?
Clarity Pro’s smart webcam slides up and down whenever your computer’s operating system (macOS, Windows, Chrome) attempts to access a webcam feed, not specific integrations with each application.
As a result, the webcam will work with any program attempting to access a webcam, not just a few popular ones.
How do I adjust the webcam’s framing?
To adjust the framing of your webcam, you first need to slide the webcam up.
Open a program which requires the webcam – on Windows 11 we recommend the “Camera” app or “Photo Booth” on macOS.
Open this application and switch the active camera to Clarity Pro’s – this can be done via the “Camera” menu in Photo Booth or hitting the “Switch Camera” button in Camera – see below.
Once you’ve activated Clarity Pro’s webcam, it will slide up out of the monitor. You can now adjust its vertical framing using the scroll wheel on the rear of the camera.
Display
How accurate are Clarity Max’s Colours?
Clarity Max has quite accurate colours, 100% coverage in the key gamuts.
The stats listed below are the average colour accuracy for Clarity Max, although be aware that each panel’s colour
Although each monitor is varies slightly, below are the average colour accuracy stats for Clarity Max.
Clarity Max:
Gamut Coverage (NTSC): 91%
Gamut Coverage (DCI-P3): 96%
Gamut Coverage (SRGB): 99.9%
Gamut Coverage (Adobe RGB): 97%
Gamut Coverage (BT2020 CIE1976): 77%
Average ΔE: <1
Clarity Max Pro and Clarity Max Touch:
Gamut Coverage (NTSC): 95%
Gamut Coverage (DCI-P3): 102%
Gamut Coverage (SRGB): 98%
Gamut Coverage (Adobe RGB): 110%
Gamut Coverage (BT2020 CIE1976): 76%
Average ΔE: <1
How can I calibrate Clarity?
Clarity comes with several factory calibrated colour temperatures and video modes.
If you wish to further calibrate your monitor, you will need to use a third-part calibration tool, such as a Calibrite/Sypder.
Does Clarity Max support HDR?
Yes, Clarity, Clarity Pro and Clarity Max Touch all support HDR 400.
Does Clarity support automatic source switching?
No. While Clarity will automatically switch to the only active source, it can’t switch between two active video inputs based on which has current activity with an external switcher, like a KVM.
Does Clarity have a Picture in Picture function?
Yes, Clarity supports a variety of picture-in-picture modes for displaying multiple video sources at the same time.
Specifications
Part No.: 32C4KPDW
Barcode (EAN): 9350784028464
User Interface
Power Input: DC 19V 7.89A, 150W (Max)
Output: USB-C (Connection for Video (DP Alt Mode required), 65W Laptop Charging and Data), 2x HDMI 2.1, DisplayPort 1.4, 2x USB-A (5Gbps, 7.5W Charging, For Accessories), 3.5mm Audio, USB-B (Connects computer to USB-A and Audio ports)
USB PD Power Delivery: Up to 65W USB-C Laptop Charging
Backlight: LED
Aspect Ratio: 16:9
Brightness: 320cd/m2 (Typ.)
Refresh Rate: 60Hz
Panel: IPS
Viewing Angle: 178°(H) / 178°(V)
Webcam: 8MP (4K)
Physical Characteristics
Product Dimensions: 726mm (L) x 481mm (D) x 250mm (H)
Material: ABS, Glass, Aluminium
Weight: 6.5kg without stand
VESA Mount Compatible: FDMI MIS-D 100mm
Screen Size: 32”
Stand Dimensions: Base: 240mm wide x 250mm deep. Front of the
monitor sits 35mm from the front of the base.
Monitor Height: 420mm. Height between desk and monitor: 50-180mm
Package Includes: Clarity Max 32” Monitor, Power Adapter, User Manual, DisplayPort to DisplayPort Cable, HDMI to HDMI Cable, USB-C to USB-C Cable (USB 3.2 - Gen 2), USB-A to USB-B Cable
Warranty: 2 Year
Resolutions Supported: Up to 3840x2160 @ 60Hz Landscape, Up to 2160x3840 @ 60Hz Portrait
Pixel Density: 138 PPI
Dimensions (incl. stand at max height): 725*250*606mm (LxDxH)
Height from Desk to Top of Monitor: 606mm (Stand at Max Height), 480mm (Stand at Min Height)
