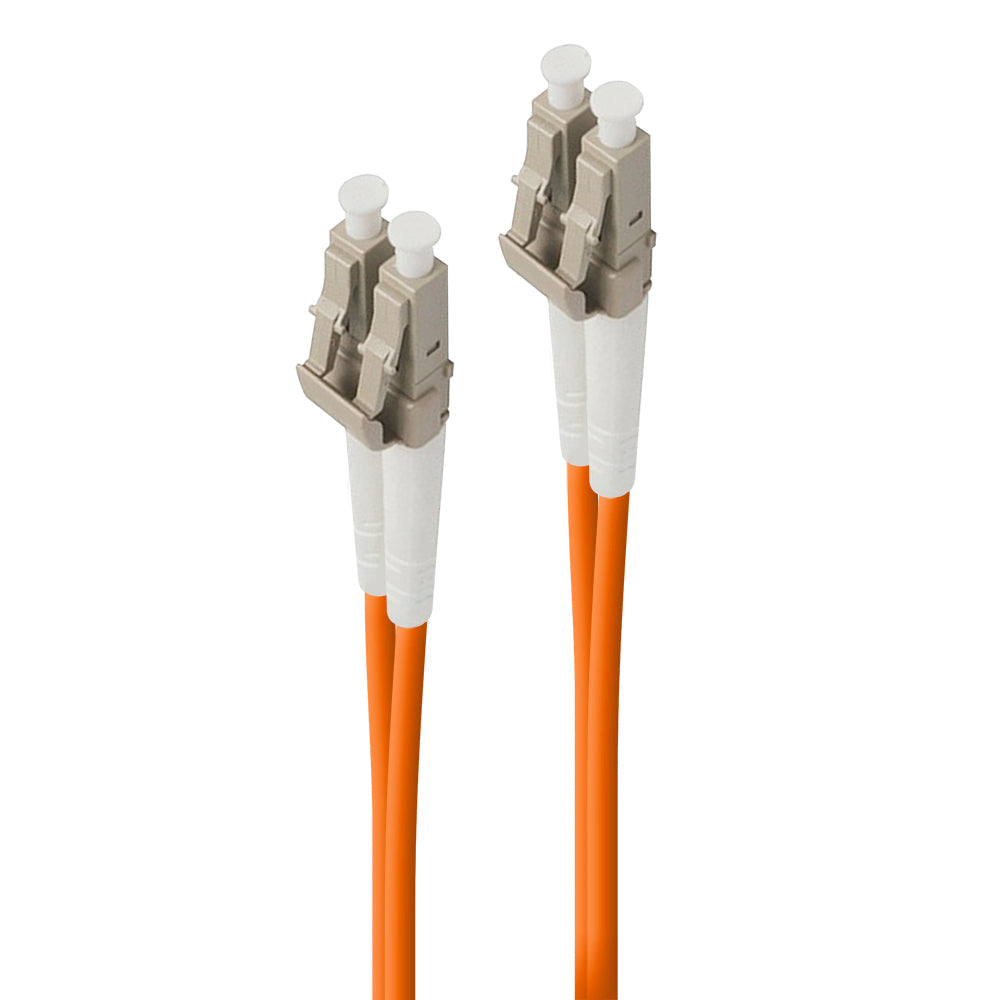

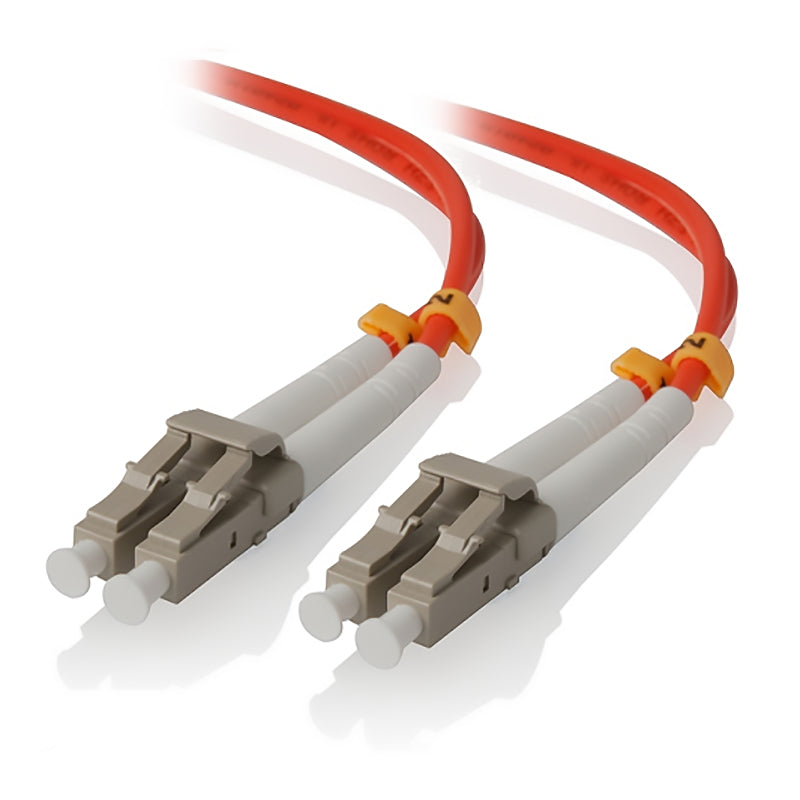

LC-LC Multi Mode Duplex LSZH Fibre Cable 62.5/125 OM1
LC-LC Multi Mode Duplex LSZH Fibre Cable 62.5/125 OM1
Roll over image to zoom in Click on image to zoom
LC-LC Multi Mode Duplex LSZH Fibre Cable 62.5/125 OM1LC-LC Multi Mode Duplex LSZH Fibre Cable 62.5/125 OM1

LC-LC Multi Mode Duplex LSZH Fibre Cable 62.5/125 OM1

SKU: LCLC-01-OM1
Length: 1m
Price:
$26.49

Stock: In Stock

FLASH SALE 🔥 | Get 20% Off Using Code ALG20

2-Year Limited Warranty

Based In New Zealand

14-Day Returns

Free Freight Over $100

Secure Checkout

Expert Support

Features

• Supports 1Gigabit applications.
• Multi-Mode OM1 fibre optic cable.
• Available in various lengths starting from 0.5m and 20m length.
• Low Smoke Zero Halogen Jacket for minimal toxic emissions in case of fire.
• 100% optically tested and provided with test reports.
• Warranty: Lifetime

ALOGIC’s Multi-Mode OM1 cables are designed to support Gigabit Fibre & ethernet channel, the cables are capable of supporting 1 Gigabit applications up to over 250m length.

ALOGIC Fibre Cables are constructed with the high quality components such as genuine Corning Inficore 300 glass and high grade connectors with ceramic ferrules to ensure the maximum performance accuracy and durability.

The cables meet or exceed industry standard specifications; each cable is individually tested for maximum reliability and comes with performance reports. ALOGIC OM1 Patch Cables are available in various lengths starting from 0.5m and 20m.

UP2QC10AWA-SGR

Specifications
  • SKU: LCLC-01-OM1
  • Connector: LC, LC
  • Wavelengths: 62.5 µm (OM1)/125 µm
  • Attenuation: At 850 nm: <3.5 dB per km | At 1300 nm: <1.0 dB per km
  • Insertion loss : <0.2 dB per 300 m @ 850 nm or 1300 nm
  • Fiber: Glass
  • Number of fibers: 2
  • Jacket: LSZH (Low Smoke Zero Halogen)
  • Cable outer diameter: 2mm +/-0.2mm
  • Safety: ETL/c-ETL
  • Warranty: 2 Years
  • Length: 0.5m and 20m
