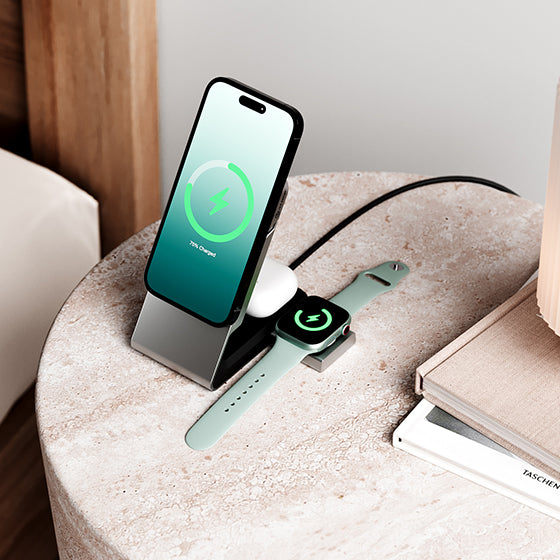

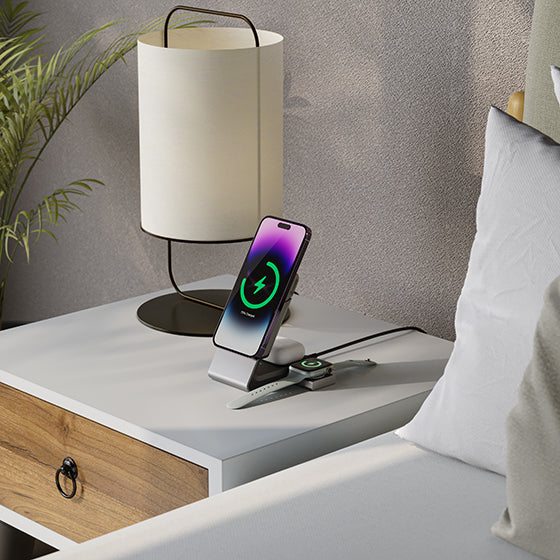

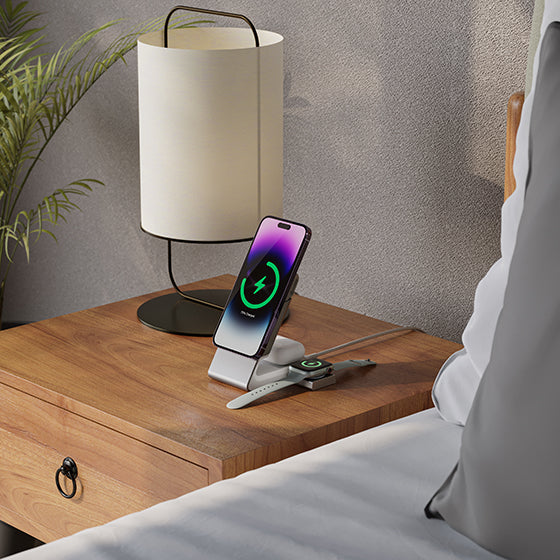

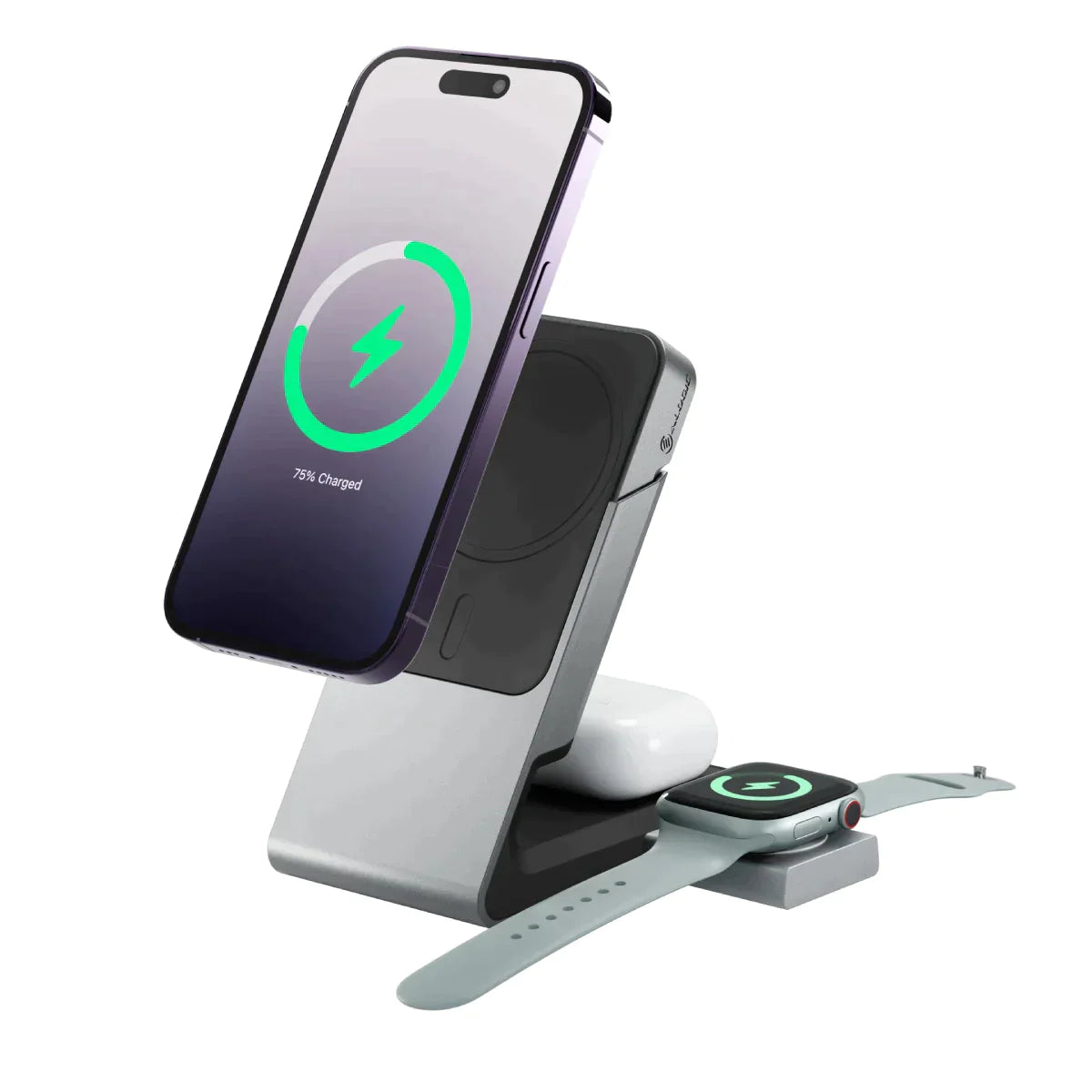

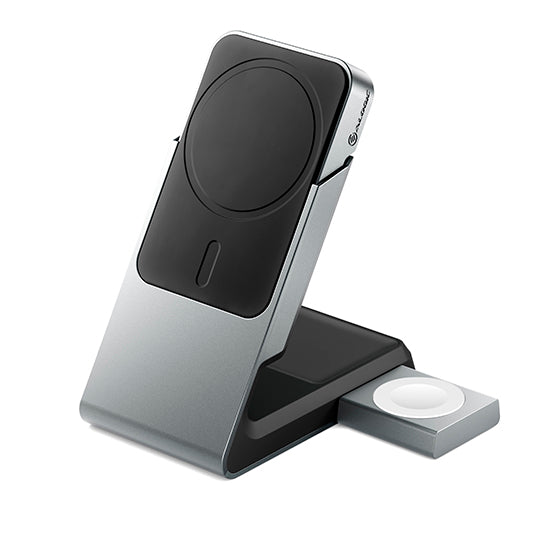

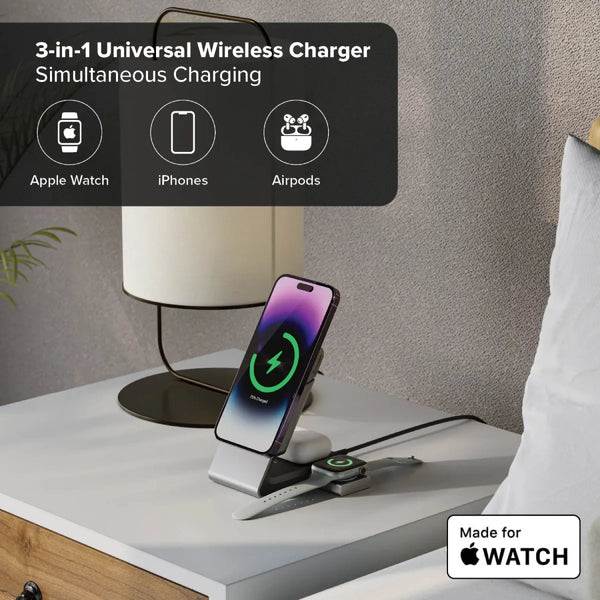

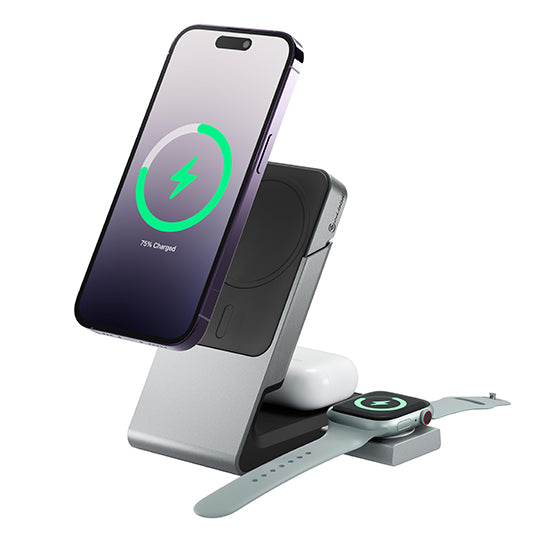

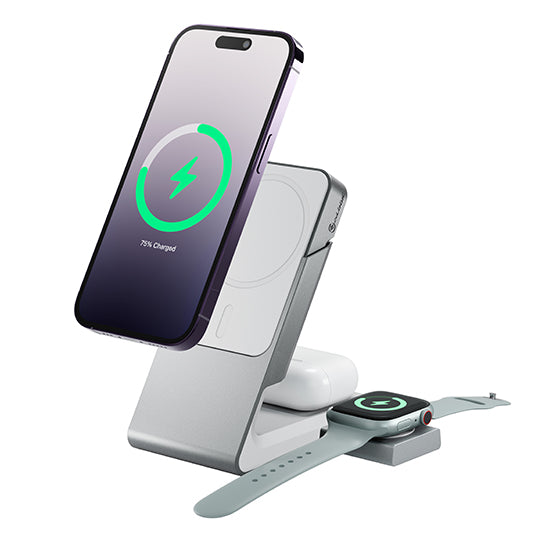

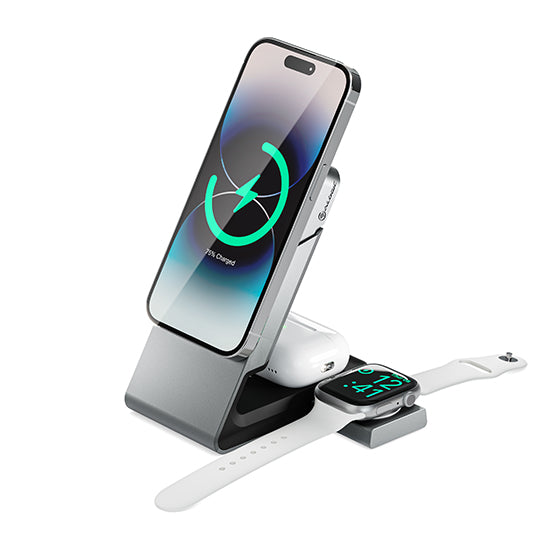

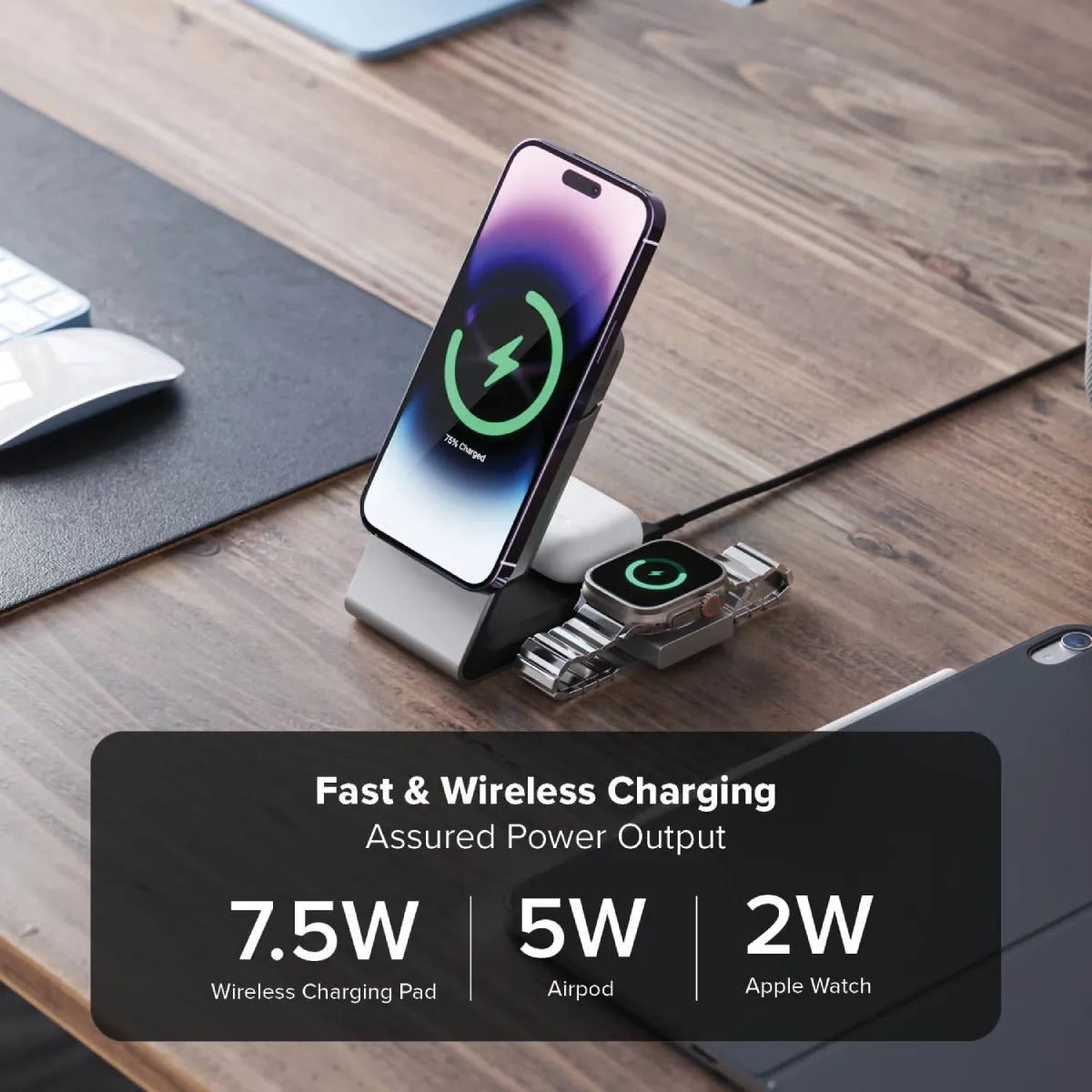

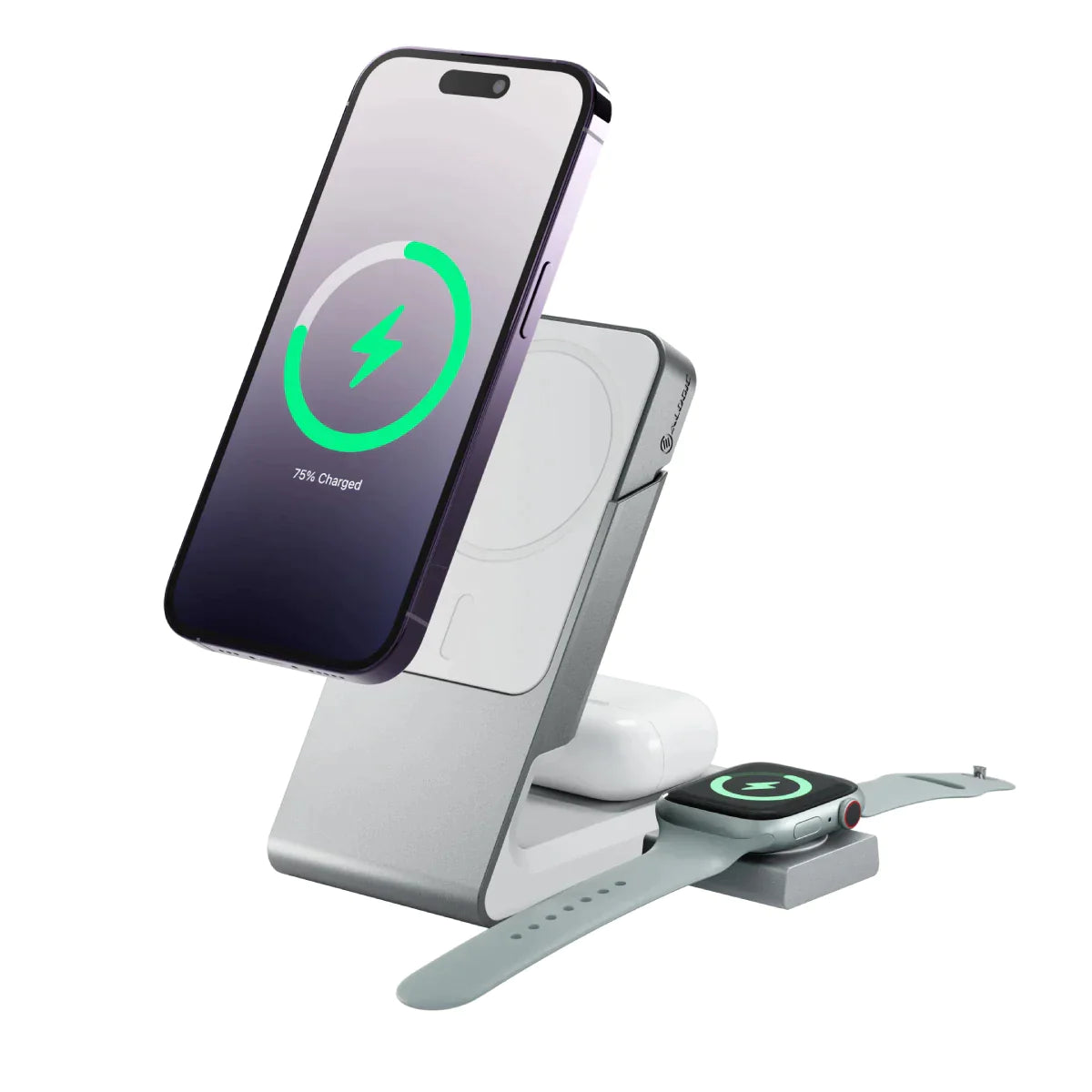

Matrix 3-In-1 Universal Magnetic Charging Dock with Apple Watch Charger

The Magnetic Charging Dock (2-in-1 or 3-in-1 charger) can connect to the Matrix Wireless Power Bank to recharge the Power Bank at the same time as your phone.

To do so, simply slide the Magnetic Charging Pad out from your Charging Dock and slide the Power Bank into its place.

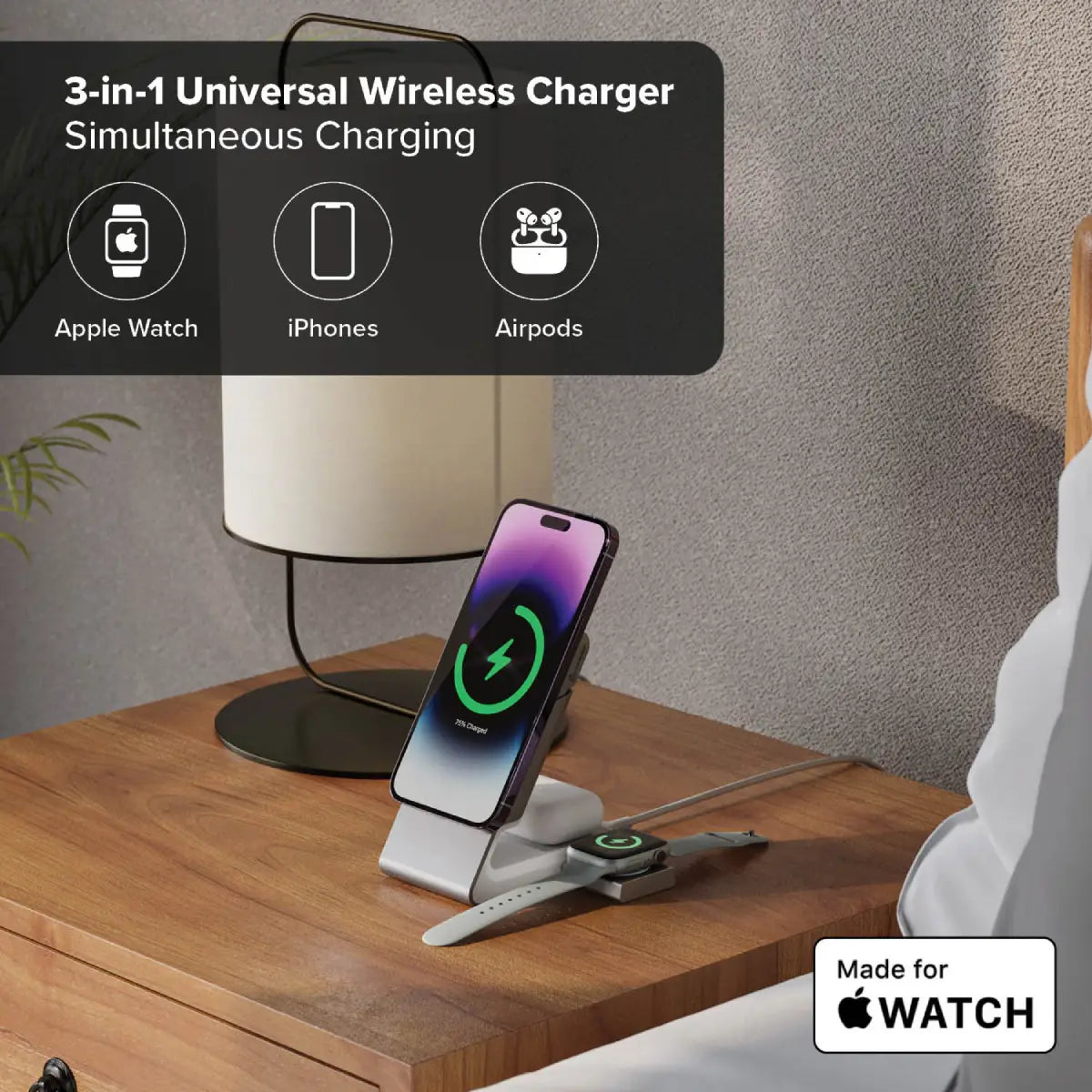

The Matrix USB-C Apple Watch Charger can also plug into the side USB-C port of the charging dock to create a 3-in-1 charger, then detached for seperate use on the go.

The Matrix 2/3-in-1 Magnetic Charging Docks and Wireless Car Charger include Wireless Charging Pads for use with the dock/car mount.

This wireless charging pad is a compact, 15W MagSafe-compatible Qi charger and can be used slotted into the dock/car mount, or by itself if plugged into a USB-C power source.

The Matrix 5,000mAh Wireless Power Bank has two additional features:

1. A 5,000mAh battery to recharge devices without a power source
2. The ability to charge other devices using via its USB-C port, using battery power.

So, while the charging pad can only charge one MagSafe-compatible device and needs to be connected to a power source (USB-C or a Matrix dock), the Power Bank can provide on-the-go charging without being plugged in.

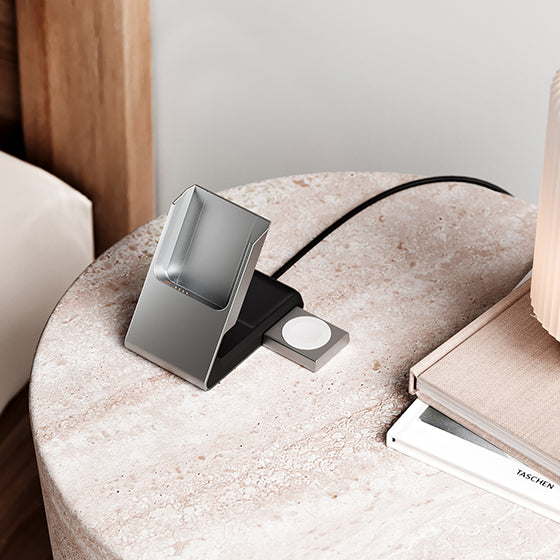

The dock included with The Matrix 2-in-1 Magnetic Charging Dock and 3-in-1 Magnetic Charging Dock is exactly the same.

When you purchase the Matrix 3-in-1 Charging Dock, you receive the dock, the wireless charging pad, a USB-C Apple Watch Charger and a 30W power adapter to plug into the wall.

When you purchase the Matrix 2-in-1 Charging Dock, you only receive the dock and the wireless charging pad.

If you purchase the 2-in-1 charging dock and later wish to upgrade it with Apple Watch charging capabilities, you can purchase the standalone Matrix USB-C Apple Watch Charger and plug it into the side of your dock, just as if you’d bought the 3-in-1 set.

No, the Matrix USB-C Apple Watch Charger only supports 2W charging.

The Matrix 2-in-1 Magnetic Charging Dock is available in black and white.

No, the Matrix 5,000mAh Wireless Power Bank must be purchased separately from the Car Charger and Magnetic Charging Dock at this time.

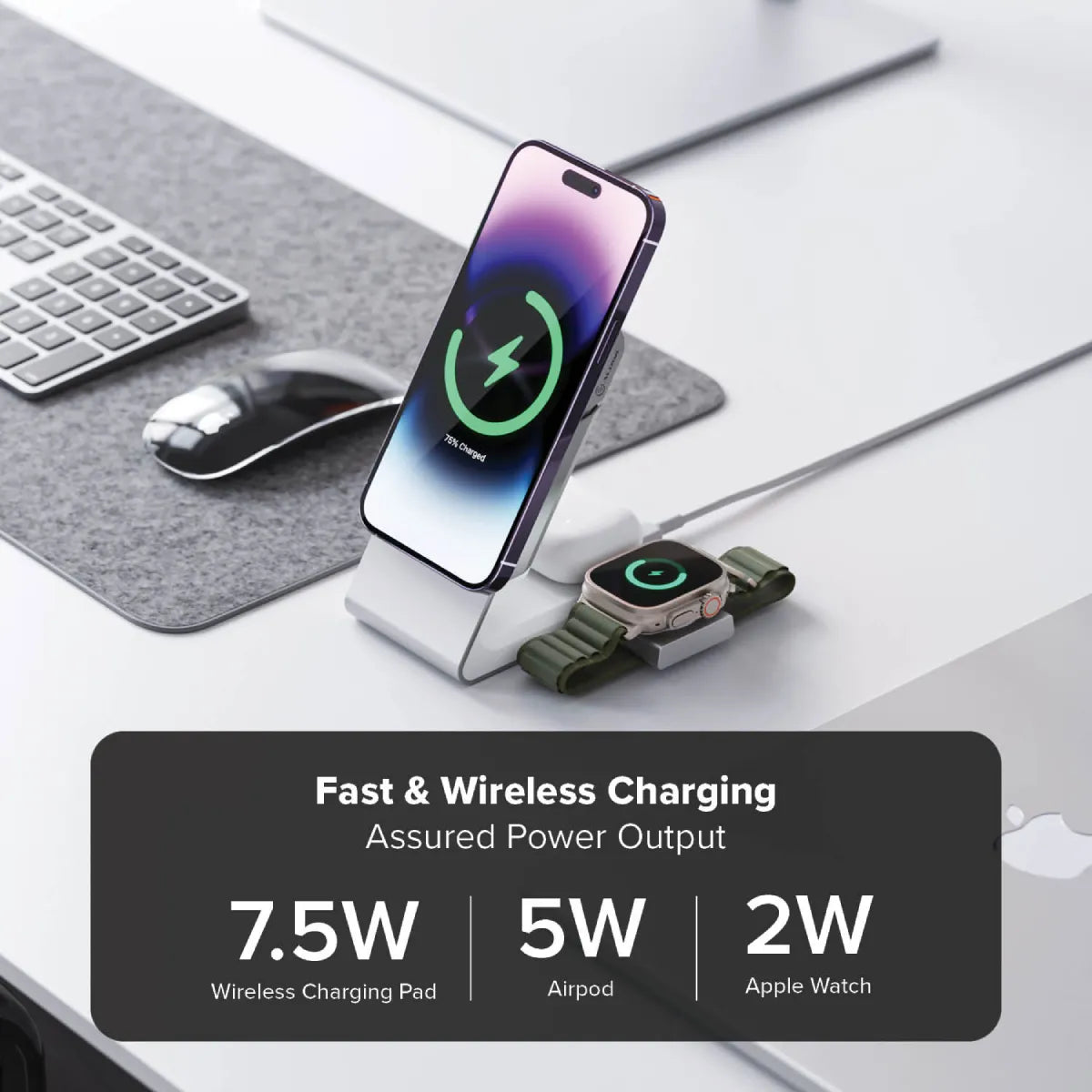

Matrix Chargers work with all MagSafe and Qi-compatible iPhones, with speeds of 7.5W. MagSafe iPhones (iPhone 12 or later) work out of the box with Matrix.
Just snap your phone onto the charger and it will automatically align to the optimal charging position.

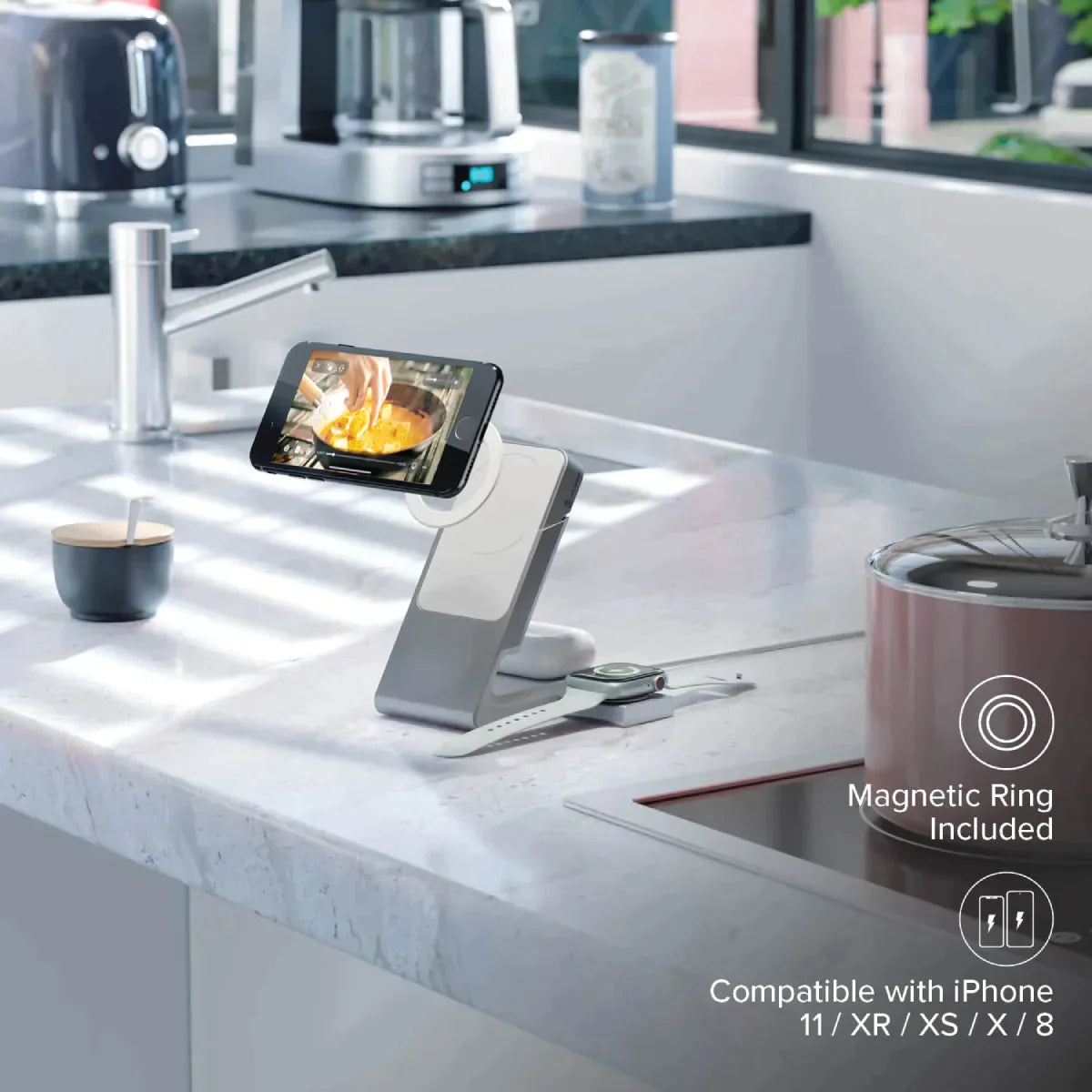

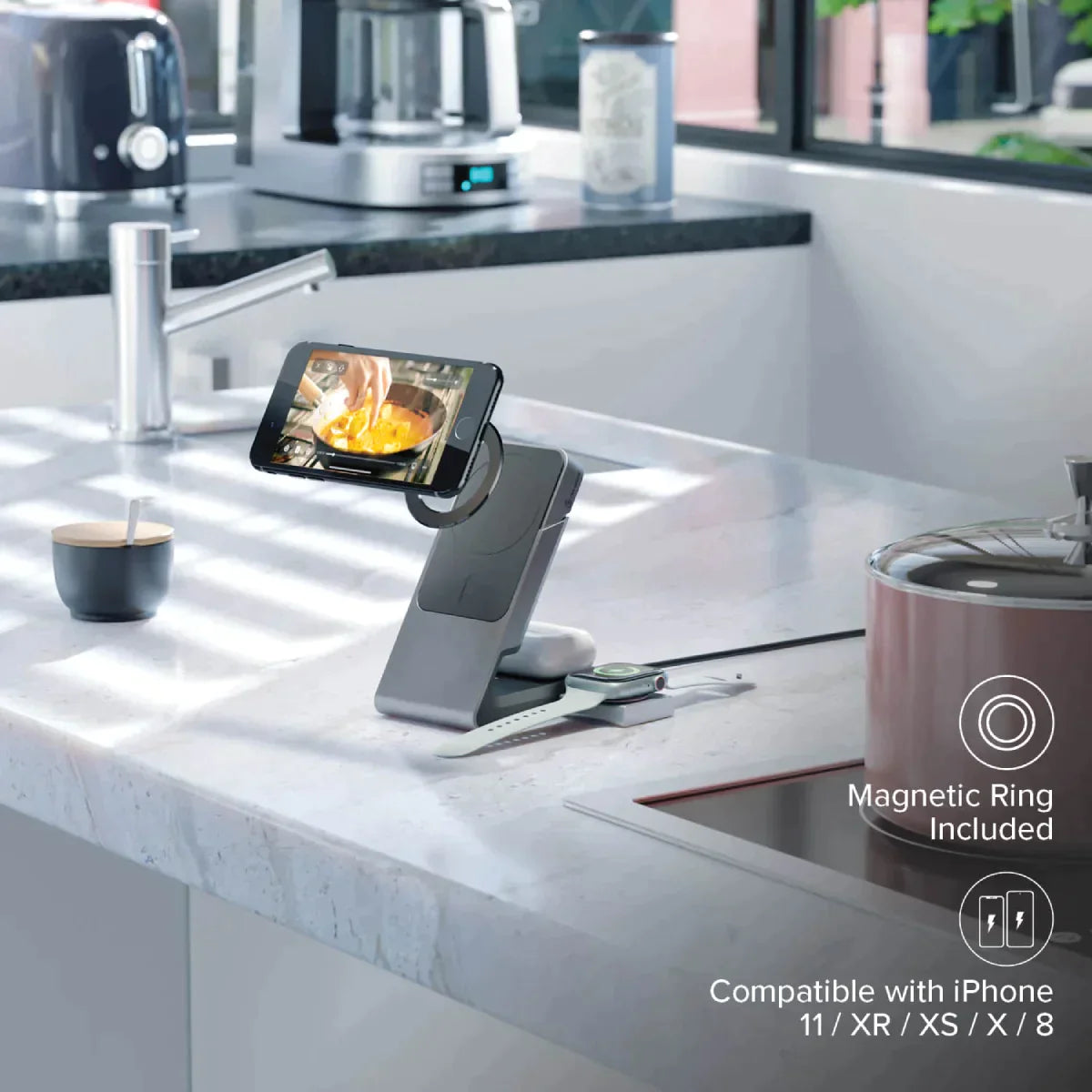

J iPhones 8, 9, 10 and 11 also work with Matrix, however you first need to attach the included Magnetic Support Ring to the back of your iPhone or preferred case to allow it to attach to the Matrix Magnetic Charger.

Wireless Matrix wireless chargers are compatible with any Android phone that supports Qi wireless charging.
They can deliver power at speeds up to 15W.
Almost all modern Android phones that support wireless charging use Qi, and can charge with Matrix.

This includes:

Samsung Galaxy S7 or later
Samsung Note 5 or later
Samsung Galaxy Z/Flip and Fold
Google Pixel 3 or later
To use a Qi-charging phone with a Matrix magnetic charger, you will need to attach the included Magnetic Support Ring onto the back of your phone or case.
To make this as easy as possible, Matrix chargers include an alignment tool with measurements for the most popular Android phones, to ensure the ring correctly aligns your phone to its optimal charging position.
The Matrix Magnetic Charging Dock also features a second, flat Qi-charging cradle which can charge a Qi-compatible phone at a speed of 5W.
Wired

The Matrix Wireless Power Bank and Magnetic Charging Dock also support 7.5W wired charging over a USB-C cable for phones that do not support wireless charging.

Like other MagSafe-compatible chargers, Matrix are designed to work with phones using either:

a. MagSafe-compatible cases or;
b. Cases less than 4mm thick
Using a case thicker than 4mm without in-built MagSafe-compatibility is likely to interfere with wireless charging and your phone's adherence to the carger.
Attaching the Magnetic Ring included with Matrix Products to your case may improve magnetic and charging reliability, however this is not recommended for cases with metal components, as these may overheat during charging.

The Matrix Magnetic Charging Dock includes two charging options for earbud cases:
- A wireless Qi-charging cradle for Qi-wireless charging earbuds cases (including many Apple AirPods). - USB-C charging output for USB-C charging earbuds cases.

The Matrix USB-C Apple Watch Charger supports all current Apple Watches, including:

- Apple Watch (1st Generation)
- Apple Watch Series 1-8
- Apple Watch SE
- Apple Watch SE (2nd Generation)
- Apple Watch Ultra

The Matrix ecosystem does not include a dedicated charger for Samsung Watches.

However, the Matrix Power Bank, 2-in-1 and 3-in-1 Charging Docks can all power and charge USB-C devices, including third-party Samsung Watch Chargers.

If your phone isn’t charging while connected to the magnetic charging pad, there are a few quick troubleshooting steps that should get you charging again.
Double check your phone is compatible with either Qi or MagSafe charging. If it doesn’t support these styles of wireless charging, it won’t work with Matrix. Remove your phone from the charger and remove your phone from the charger and reattach it, ensuring the centre of your phone aligns with the ring on the charging pad. Ensure your Matrix magnetic charging pad, charging dock or car charger is plugged into a power source of at least 20w via its rear/bottom usb-c cable. If your phone is in a case, try removing it. Cases thicker than 4mm can interfere with wireless charging.

Matrix Magnetic Chargers have a number of safety features that can disable charging in case of danger. To ensure one of these is not interfering with operation:
Check that there are no other objects on the charging surface, especially ones between the phone and charger. Objects not designed for MagSafe charging may heat up during the charging process and damage the charger or your phone. When detected, the charger switches off. Ensure your phone does not contain small metallic elements, such as foil logos. These may overheat during charging and damage the case, phone and charger.

To install the magnetic ring included with Matrix products, you can follow the included instructions or this step-by-step visual guide we've prepared (guide begins halfway down the page).
